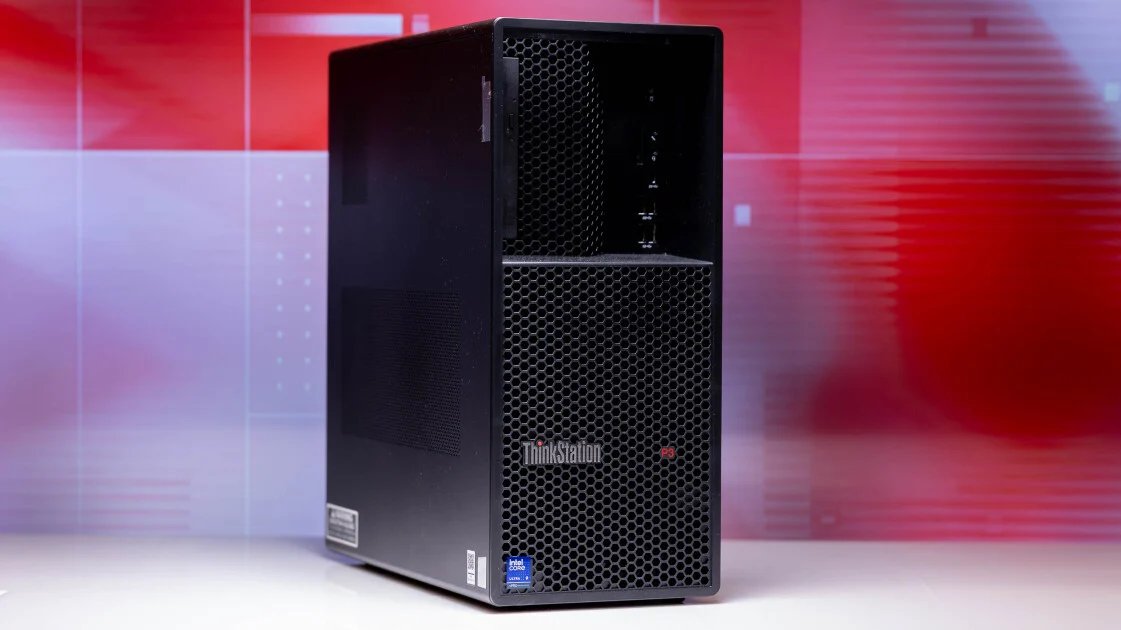

Lenovo’s ThinkStation P3 tower appears to be like skilled within the model’s basic aesthetic, pairing a black rolled-steel case with a honeycomb entrance panel and unmistakable branding. At 16.3 by 7.1 by 14.6 inches (HWD), it’s compact for a mid-tower, taller however shorter and slimmer than the Dell Professional Max Tower T2 (15.2 by 7.4 by 17.2 inches). The built-in carry deal with makes the P3 simpler to maneuver than most workstations, and if you decide up the machine, you may really feel the construct high quality—no flex or creaks, only a sense of durability.
(Credit score: Joseph Maldonado)
The recessed entrance I/O choice is flexible, together with one 20Gbps USB-C port, 4 USB-A ports (two 5Gbps, two 10Gbps), headphone and microphone jacks, and an SD-card reader. Our unit additionally includes a slimline DVD-RAM drive, although this bay also can accommodate varied storage drives.
(Credit score: Joseph Maldonado)
Round again, the P3 presents two USB 2.0 ports, two 5Gbps USB-A ports, a 2.5Gbps Ethernet jack, and a line-in audio jack. Lenovo’s Flex choices permit extra connections, and you will get add-in playing cards for extra specialization. Wi-fi networking is elective; our unit options Intel’s BE200 card supporting the most recent Wi-Fi 7 and Bluetooth 5.4 requirements. For monitor output, the RTX Professional 5000 Ada Era presents the anticipated 4 DisplayPort connectors, with a further HDMI and three DisplayPort connectors on the motherboard.
(Credit score: Joseph Maldonado)
To get contained in the chassis, simply take away a few thumbscrews and open the left door. Inside, the setup is simply as easy: most elements, together with the GPU, may be serviced with out instruments. Lenovo’s intuitive purple touchpoints make entry easy. To take out the optical-drive meeting, for instance, all you’ll want to do is press the discharge deal with simply behind the drive to slip it out the entrance. You utilize a rear launch deal with to free the remainder of the cage and pull it out the aspect.
(Credit score: Joseph Maldonado)
The Intel W880-based MicroATX motherboard, in the meantime, presents 4 DIMM slots. (The W880 chipset permits ECC reminiscence help, though our take a look at mannequin didn’t come outfitted with ECC.) The PCIe 5.0 drive in our evaluate unit (properly!) comes with a heatsink. The aluminum CPU cooler will not win any glamour awards, nevertheless it works adequately for the 65-watt Core Extremely 9 285; Lenovo presents an upgraded mannequin for Ok-series processors.
Airflow follows a standard back-to-front sample. A big entrance consumption feeds a rear exhaust fan and the power-supply fan, whereas the GPU will get devoted cooling from two side-mounted 120mm exhaust followers. The meeting detaches with out instruments, however watch out in regards to the connected cabling earlier than pulling it away. Our unit additionally leaves house for a 3.5-inch drive beside the ability provide.
In every day use, the P3 runs virtually silently at idle, with a reasonable however unobtrusive noise stage beneath sustained load. The one questionable selection is the aspect followers, since they exhaust air laterally—a system positioned on a desk can find yourself directing that warmth towards the consumer. The airstream was solely lukewarm, in my testing; our unit’s blower-style RTX Professional 5000 Ada Era GPU despatched almost all its exhaust out the again.
As anticipated from a workstation on this class, the P3 presents a full vary of Unbiased Software program Vendor (ISV) certifications for a lot of skilled apps and workflows. (Lenovo maintains an inventory.) The system features a three-year guarantee with on-site service, with out there prolonged protection and managed companies.
