Pc-aided design has a popularity drawback. For most individuals, a CAD design means multi-gigabyte installers, clunky license managers, and subscriptions that generally value greater than the {hardware} your PC has. Now there are a number of design instruments that do not require a subscription, however certainly one of them is sort of an answer with regards to CAD.
That’s, till you uncover SolveSpace. It is a light-weight, open-source, absolutely parametric 3D CAD software that not solely runs natively in your desktop, but in addition in your browser. No dongles, no cloud lock-in, and no want to fret about {hardware} specs. Simply open a tab and begin designing.
Associated
I discovered an open-source various to each Adobe app
Seems, Adobe’s inventive suite is not your solely choice.
What SolveSpace is—and why it feels surprisingly succesful

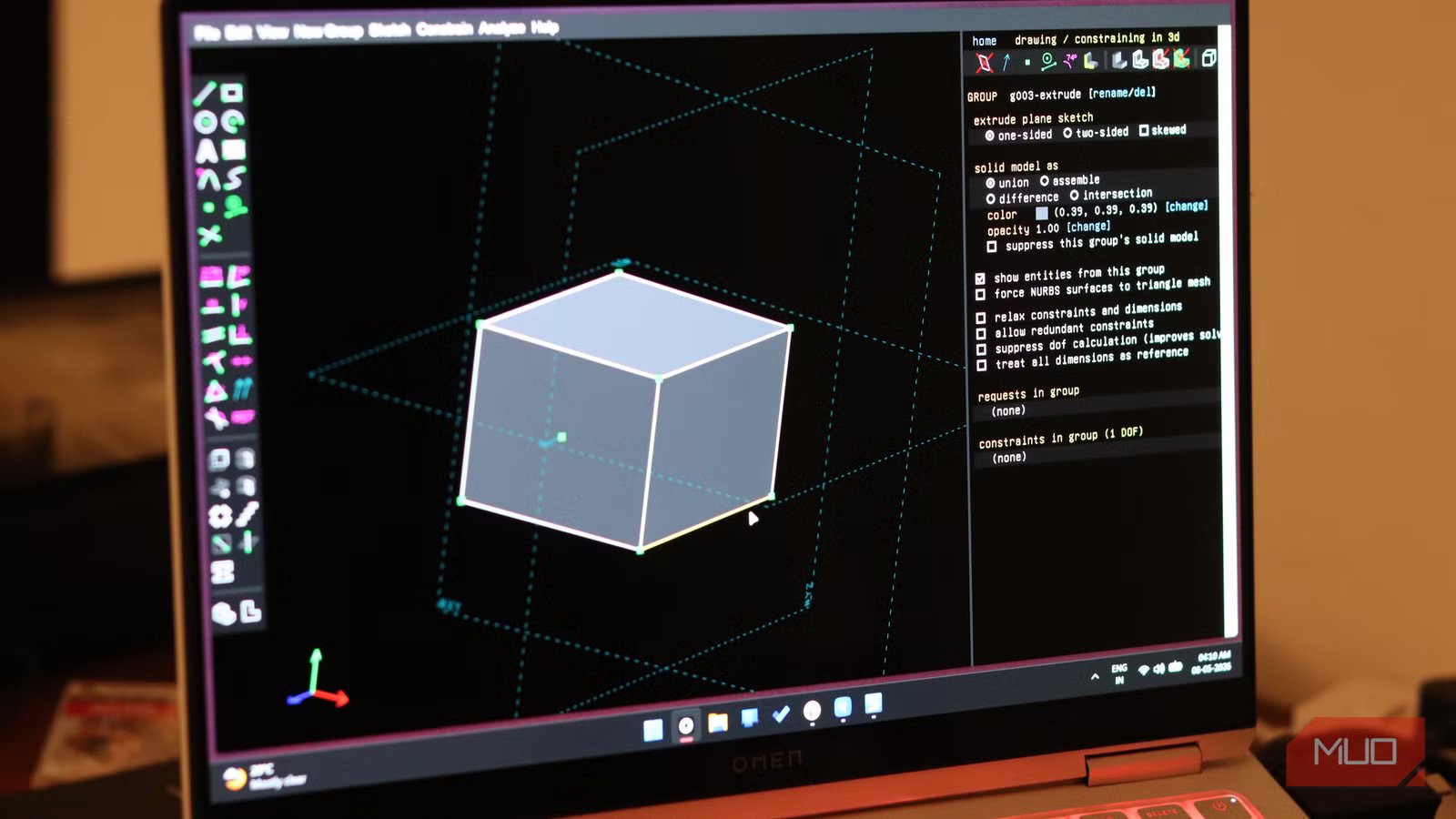

Yadullah Abidi / MUO
So, aside from being light-weight sufficient to run in a browser and free to make use of, SolveSpace can be constraint-based, that means you inform the software program the relationships between components, reminiscent of whether or not a line is horizontal, a circle is tangent to that arc, two distances are equal, and so forth, and the solver figures out the geometry from there.
This can be a utterly completely different strategy in comparison with the standard technique of dragging shapes round a canvas. For anybody doing mechanical or precision work, it is much more dependable. After which there’s the browser angle.
SolveSpace’s codebase is compact sufficient that the builders have been capable of compile it for the browser utilizing Emscripten, a toolchain that converts C and C++ code into WebAssembly. SolveSpace is developed primarily as a standard desktop program, and the net model continues to be experimental. Nonetheless, it is nonetheless fairly usable, particularly with smaller fashions. The online model additionally has no dependencies as soon as it is loaded, that means you possibly can technically run it offline as soon as the tab is completed loading.
OS
Home windows, Linux, macOS, internet Browser
Developer
Jonathan Westhues
Value mannequin
Free, Open-source
A light-weight, open-source parametric CAD software for 2D/3D modeling that focuses on constraints, precision, and ease with out the overhead of conventional CAD suites.
It does greater than you’d count on
Sketching, constraints, and actual 3D modeling free of charge
Once you first open SolveSpace, you may discover the interface a bit minimalistic. However do not let that idiot you, the software covers a stunning vary of use circumstances in each 2D and 3D design.
On the 2D facet of the fence, you possibly can sketch with strains, circles, arcs, cubic Bezier curves, and C2 interpolating splines with the choice of making use of constraints and dimensions as you design. For 3D, you’ve got bought your normal extrude and resolve choices, aside from Boolean operations like union, distinction, and intersection to construct stable components. SolveSpace works immediately with NURBS surfaces, which implies it is doing actual geometry slightly than approximating your curves with polygons.
This system additionally handles assemblies, letting you hyperlink components collectively, constrain them relative to one another, and have adjustments in particular person components propagate robotically by the meeting. There’s additionally a built-in mechanism simulator that permits you to mannequin planar or spatial linkages with pin, ball, or slide joints, animate them, and export the movement knowledge as a CSV file. When you’re working with a customized bracket, enclosure, or mechanical linkage, this function alone is a lifesaver.
Final however not least, you’ve got additionally bought some pretty good export choices. You’ll be able to export to STL for 3D printing, STEP for interoperability with different CAD instruments, DXF for laser cutters and waterjet machines, SVG and PDF for technical drawings, and even Three.js-compatible HTML recordsdata for in-browser viewing or sharing.
Light-weight, however critically quick and succesful
Yadullah Abidi / MUO
Aside from having the ability to run in a single browser tab, the general footprint of the desktop app is slightly small, too. On Home windows, you do not even want to put in it because it’s distributed as a standalone EXE file that boots inside seconds. In comparison with a heavier program like Fusion 360, that is saving you gigabytes of cupboard space and reminiscence assets. To not point out the necessity for an web connection to confirm the license.
SolveSpace’s light-weight nature is intentional, as all the program was constructed round a complicated constraint solver, and every little thing else is saved lean to meet that goal. This additionally means you possibly can run SolveSpace on nearly any laptop and do not require the mammoth {hardware} specs that almost all big-name 3D design or CAD packages require. So long as you’ve got bought a pc and the EXE file (or a loaded browser tab), you are good to go.
It’s not good—and that’s okay
The place it falls brief in comparison with heavyweight CAD instruments
SolveSpace is not making an attempt to switch SolidWorks or Fusion 360 for knowledgeable group of mechanical or aerospace engineers, and this system could be very clear about that. Higher developed and paid for designing packages nonetheless include higher options that make designing and dealing on engineering issues simple. The second your design begins getting a bit too complicated, SolveSpace will begin to present cracks. Regardless, it is a kind of open-source packages I would fortunately purchase.
It is meant for the overwhelming majority of hobbyists, makers, electronics enclosure or small-batch half designers, and college students studying parametric CAD for the primary time. SolveSpace makes CAD designing accessible to anybody, whether or not or not they’ve the cash or {hardware}. And the truth that it suits in your browser tab whereas operating a full native solver is one thing packages much more costly cannot declare to do.
